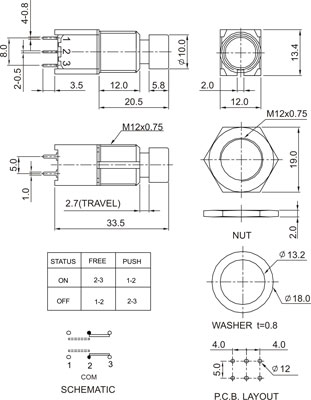

Part number: 3FS/22P1N



FOOT SWITCH,
2P2T, NON-SHORTING,
PCB TYPE

Specifications

Rating

6A @125V AC, 3A @250V AC, 4A @30V DC

Dielectric Strength

500V AC for 1 minute

Contact Resistance

50 mA max

Operating Force

1.2 kgf

Insulation Rresistance

100mOhm min

Life

30000 cycles
