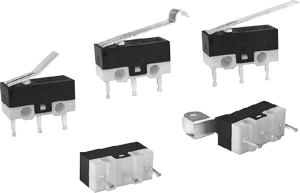

LK1-Custom Switch

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

Part Number: 3SW/LK1 - - - - -





Rating

Code

Value

Empty

3(0.5)A @250V AC / 3A @125V AC

C

1(0.5)A @250V AC / 1A @125V AC

D

0.5(0.2)A @250V AC / 0.5A @125V AC

E

0.3(0.1)A @250V AC / 0.3A @125V AC

F

0.1(0.05)A @250V AC / 0.1A @125V AC

Function

Code

Function

Z

SPDT

T

SPST-NO

D

SPST-NC

Operating force

Code

OF

1

0.45N

2

0.75N

3

1.5N

4

2.5N

Lever

Code

Dim



Code

Dim



Code

Dim

0

3

8

1

5

E

2

6

B

Terminals type

Code

F (solder)

G (long solder)

P (PCB straight)

L (left side PCB)

Fig.





Code

R (right side PCB)

S (self-clinching PCB)

H (mini solder)

Fig.
