LW2-3 Switch

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

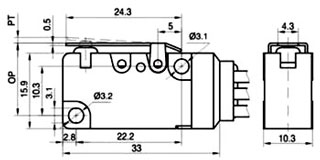

Part Number: 3SW/LW2 - - Z1W4



Operating force

OF max (N)

2.0

RF max (mm)

0.2

PT max (mm)

1.6

OT min (mm)

0.8

MD max (mm)

0.5

OP (mm)

15.2

Rating

Code

Value

1

0.1A @250V AC / 0.1A @125V AC / 0.1A @30V DC

2

5(2)A @250V AC / 5A @125V AC / 5A @30V DC

3

10(3)A @250V AC / 10A @125V AC

PRODUCT SPECIFICATION

Function

SPDT

Degree of temperature

85° C

Contact resistance

30 mOhm max. initial

Insulation resistance

100 MOhm min @500V DC

Test voltage

1000V AC for 1 minute (between terminals of the same polarity)

1500V AC for 1 minute (between current-carrying metal parts and case, and between each terminal and non-current-carrying metal parts)

Vibration resistance

1.5mm @10~55Hz double amplitude

Degree of protection

IP67

Electrical life

100,000 cycles min

Safety approvals

UL, CUL, TUV, CE
