Miniature Toggle Sw # 9

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Part number:
3SW/493T89-

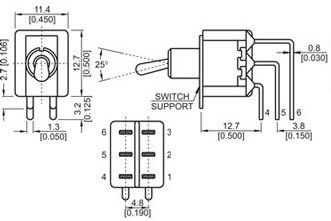

PCB layout

Code

Switching position







A

ON

NONE

ON

B

ON

NONE

(ON)

C

ON

OFF

ON

D

(ON)

OFF

(ON)

E

ON

OFF

(ON)

Term. comm.

2-3, 5-6

OPEN

2-1, 5-4

F

ON

ON

ON

G

(ON)

ON

(ON)

H

ON

ON

(ON)

Term. comm.

2-3, 5-6

2-3, 5-4

2-1, 5-4

Specifications

Function

DPDT

Operating Temperature

-30°C to +85°C

Rating

See plating option

Case

DAP

Contact Resistance

10mOhm initial

Actuator

Copper alloy, Cr plated

Insulation Resistance

1000MOhm min

Contact & Terminal

Copper alloy/steel

Dielectric Strengh

1500V RMS

Bushing

Copper alloy, Ni plated

Life

50,000 cycles

Housing

Stainless steel

Actuator options

Metal

Plastic, black

Code “1”

Code “2”

Code “3”

Code “4”

Code “5”

Code “6”

Flatted actuator (use only with bushing codes "H", "H1", H2"

Code “7”

Code “8”

Code “9”

Large actuator (bushing code not required unless "L" splashproof bushing ordered)

Locking lever (bushing code not required unless "L" splashproof or "N" non-threaded bushing ordered)

Code “Z”, “Z4”-antirotation

Code “Z1”, “Z3”-antirotation

Code “LR”

Code “LF”

Bushing options


Code

Thread

E

1/4-40 UNS

M

None


Code

Thread

F

1/4-40 UNS

N

None


Code

Thread

G

1/4-40 UNS

G1

None


Code

Thread

H

1/4-40 UNS

H1

None

H2

Metric


Code

Thread

J

1/4-40 UNS

J1

None


Code

Thread

K

Metric


Code "L"
Splashproof solution

Rubber hood sealing options

Vinyl cap options

Code

Thread

K1

metric

E1

inch

Code "E2" for Z, Z1, Z3, Z4 actuators

Cap for code “1” actuator

Cap for code “2” actuator

Code

Color

Code

Color

A0

transparent

B0

transparent

A1

white

B1

white

A2

black

B2

black

A3

red

B3

red

A4

yellow

B4

yellow

A5

blue

B5

blue

A6

green

B6

green

A7

orange

B7

orange

Contact plating options

Code

Contact plating

Terminal plating

Rating

Q

Silver

Silver

5A @125V AC or 28V DC; 3A @250V AC

R

Gold over nickel

Gold over nickel

0.4VA max @20V AC or DC max

G

Gold over silver

Gold over silver

0.4VA max @20V AC or DC max
5A @125V AC or 28V DC; 3A @250V AC

Terminal sealing options

Code

Sealing

None

None

E

Epoxy
