Part number:
3SW/493E83-



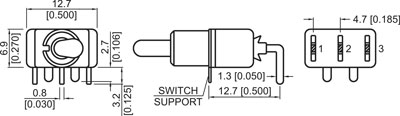

PCB layout

Code

Switching position







A

ON

NONE

ON

B

ON

NONE

(ON)

C

ON

OFF

ON

D

(ON)

OFF

(ON)

E

ON

OFF

(ON)

Term. comm.

2-3

OPEN

2-1

Specifications

Function

SPDT

Operating Temperature

-30°C to +85°C

Rating

See plating option

Case

Nylon, GF, UL94V-0

Contact Resistance

10mOhm initial

Actuator

Copper alloy, Cr plated

Insulation Resistance

1000MOhm min

Contact & Terminal

Copper alloy/steel

Dielectric Strengh

1500V RMS

Seal

Epoxy

Life

10,000 cycles

Protection

IP67

Actuator options

Metal

Plastic

Code

Code

Code

Color

Code

Color

1

2

3

Black

6

Black

4

White

7

White

5

Silver

8

Silver

Bushing options

Vinyl cap options

Code “N”

Code “E”

Cap for code “1” actuator

Cap for code “2” actuator

Code

Color

Code

Color

A0

transparent

B0

transparent

A1

white

B1

white

A2

black

B2

black

A3

red

B3

red

A4

yellow

B4

yellow

A5

blue

B5

blue

A6

green

B6

green

A7

orange

B7

orange

Contact plating options

Code

Contact plating

Terminal plating

Rating

Q

Silver

Silver

6A @125V AC or 28V DC; 3A @250V AC

R

Gold over nickel

Gold over nickel

0.4VA max @20V AC or DC max

G

Gold over silver

Gold over silver

0.4VA max @20V AC or DC max
6A @125V AC or 28V DC; 3A @250V AC
