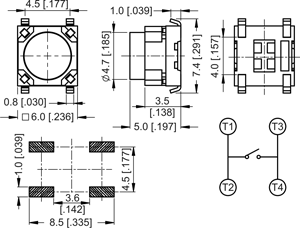

Long travel surface mount switch

Part number

Color of stem / Operating force

3SW/TLTL6

K = BLACK

W = WHITE

Specification

Rating

50mA @12V DC

Operating Temperature

-40C to +85C

Contact Resistance

100mOhm max

Life

30,000 min

Insulation Resistance

100MOhm min @500V DC

Cover

Nylon, UL94V-0, black

Dielectric Strengh

300V AC/minute

Base

Nylon, UL94V-0, black

Operating Force

200/350gf

Stem

Nylon, UL94V-0

Stroke

1.3mm

Terminal

Brass, silver plated
