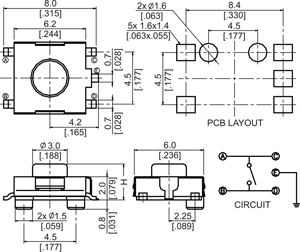

6 x 6mm thinner type switch, surface mount, w/ ground terminal

Part number

Dim “H”

Color of stem / Operating force

SW/TSZM61

2.5
[.098]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

SW/TSZM62

3.1
[.122]

6 x 6mm thinner type switch, surface mount, w/ground terminal & post

Part number

Dim “H”

Color of stem / Operating force

SW/TSMP61

2.5
[.098]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

SW/TSMP62

3.1
[.122]

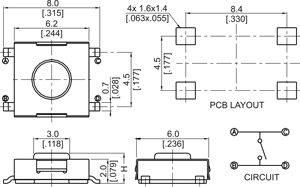

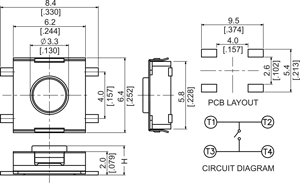

6 x 6mm thinner type switch, surface mount

Part number

Dim “H”

Color of stem / Operating force

SW/TS0M61

2.5
[.098]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

SW/TS0M62

3.1
[.122]

6 x 6mm thinner type switch, though hole

Part number

Dim “H”

Color of stem / Operating force

SW/TSYH61

2.5
[.098]

K = BLACK / 100gf

N = BROWN / 160gf

R = RED / 260gf

SW/TSYH62

3.1
[.122]

SW/TSYH63

3.5
[.138]

Specification

Rating

50mA @12V DC

Operating Temperature

-25°C to +70°C

Contact Resistance

100mOhm max

Life

100,000 min

Insulation Resistance

100MOhm min @500V DC

Cover

Stainless steel / Ni silver

Dielectric Strengh

250V AC/minute

Base

Nylon, UL94V-0, black

Operating Force

100/160/260gf

Stem

Nylon, UL94V-0

Stroke

0.25mm

Terminal

Brass, silver plated
