Tact Switch # 32

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Fig.

Specifications

Rating

50mA @24V DC

Operating temperature

-25C to +70C

Contact resistance

100mOhm max

Life

20,000 min

Insulation resistance

100MOhm min @500V DC

Cover

Ni silver

Dielectric strengh

250V AC/minute

Base

Nylon UL 94V-0, black

Operating force

160/260gf

Steam

Nylon UL 94V-0

Stroke

0.25mm

Terminal

Brass w/silver cladding

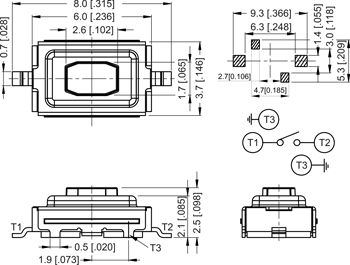

4 x 4 surface mount switch, 0.6mm thick

Part number

Operating force/color of stem

3SW/TTMGN

160gf / brown

3SW/TTMGR

260gf / red

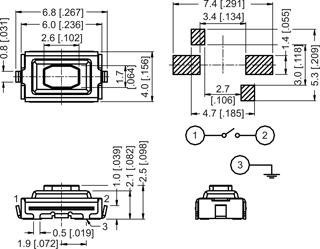

3.5 x 6mm SMT switch, bending terminals, grounded

Part number

Operating force/color of stem

3SW/TTJGN

160gf / brown

3SW/TTJGR

260gf / red
