Tact Switch # 9

Alpha Products,Inc. 351 Irving Drive, Oxnard, CA 93030, USA / T:805-981-8666 / F: 805-988-6555

New Products

Connectors

Potentiometers

RF Products

Assemblies

Contact Us

Quote Request

12 x 12mm through hole switch, w/ground terminal & post

Part number

Dim “H”

Color of stem / Oper. force

SW/TSGP21

4.3
[.169]

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

SW/TSGP25

8.5
[.335]

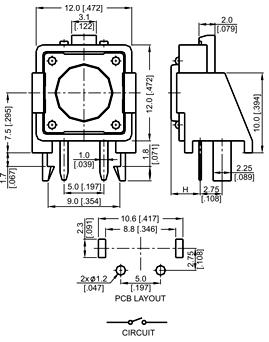

12 x 12mm switch, right angle, w/post

Part number

Dim “H”

Color of stem / Oper. force

SW/TS0A21

3.65
[.144]

N = BROWN / 160gf

R = RED / 260gf

S = SALMON / 320gf

SW/TS0A25

7.85
[.301]

Specification

Rating

50mA @12V DC

Operating Temp.

-25°C to +70°C

Contact Resistance

100mOhm max

Life

100,000 min

Insulation Resistance

100MOhm min @500V DC

Cover

Steel, tin plated

Dielectric Strengh

250V AC/minute

Base

Nylon, UL94V-0, black / brown

Operating Force

160/260/320gf

Stem

Nylon, UL94V-0

Stroke

0.35mm

Terminal

Brass, silver plated
