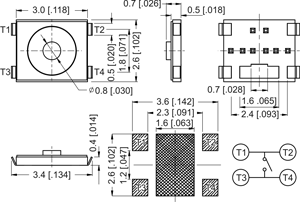

Fig.

Specifications

Rating

50mA @12V DC

Operating temperature

-40°C to +80°C

Contact resistance

100mOhm max

Life

100,000 min

Insulation resistance

50MOhm min @500V DC

Base

Nylon, UL 94V-0, black

Dielectric strengh

250V AC/minute

Stem

Silicone rubber, black

Operating force

160gf

Terminal

PhBz with silver cladding

Stroke

0.15mm





3 x 2.6 surface mount switch, 0.4mm thick

Part number:   3SW/TT3AL
